Description
Product Details:
| Place of Origin: | Sweden |
| Brand Name: | ELME |
| Certification: | CE.ELME |
| Model Number: | 761454 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P |
| Supply Ability: | 100 |
| Model: | 761454 | Length: | 5CM |
|---|---|---|---|
| Diameter: | 1CM | Colour: | Metallic |
| Plug: | Custom Version | ||
| Highlight: |
elme spreader Proximity Sensor, 12mm Proximity Sensor, CE elme spreader parts |
||

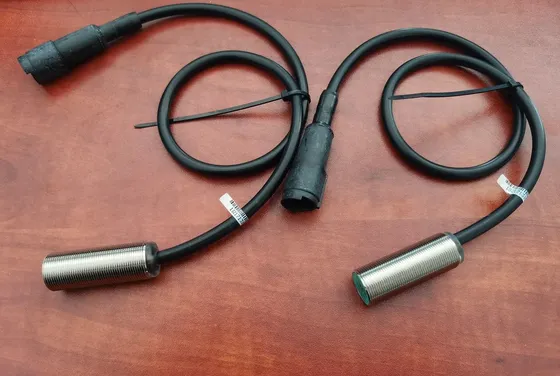

761454 Elme Spreader Spare Parts Proximity Sensor /M18/NBB5-18GM40-E2+ Weight 0.2kg
Product introduction
761454 proximity sensor is suitable for elme spreader. It is widely used in construction machinery and port machinery. Its technology is mature and stable, and it is supported and favored by the majority of users.
Product parameters
| Product model | 761454 |
| Sensing distance | 12mm |
| Control output | NPN, NO |
| Output current | DC, ≤170mA |
| Output voltage drop DC/AC | DC<12V, AC<15V |
| Consumption current | Max. 10mA |
| Standard sensing object | 12*12*1(A3 Iron) |
| Repeated precision | 0.01 |
| Response frequency | DC: 800Hz, AC: 25Hz |
| Working Ambient temperature | `-25℃ ~ +70℃ |
| Insulation resistance | ≥60M Ω |
| Housing Material | Metal |
| Protection grade | IP67 |
| Current short-circuit protection | 220mA(Excluding AC output product) |
